Products Overview

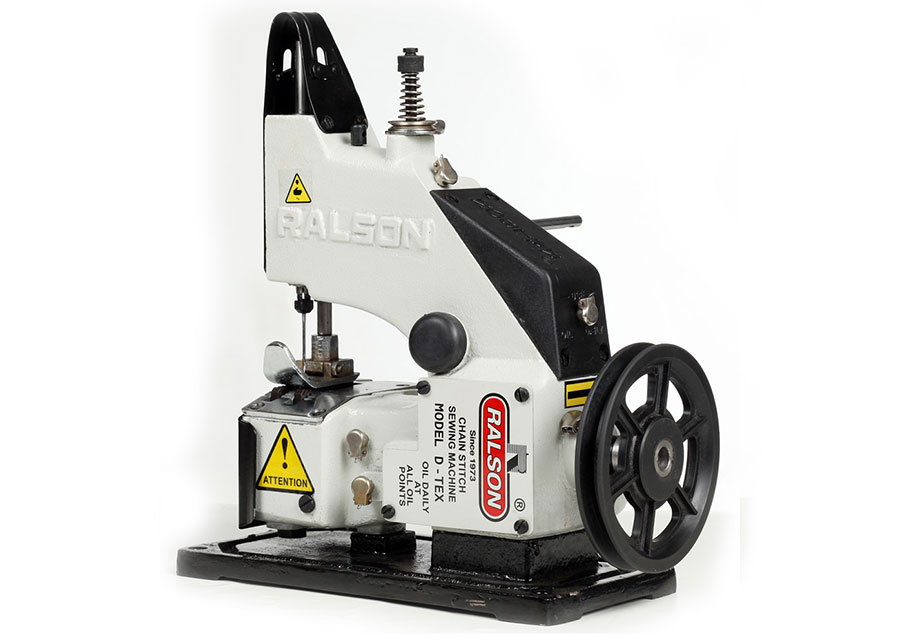

• Ralson Bag Closer D-Tex model is a single thread, single needle chain stitch portable bag closing machine.
• It is not equipped with the lubrication system and pump , hence all the vital moving parts should be lubricated by the user at the point it self.
• It is also not attached with the motor.
• The machine comes fitted with a base plate instead.

Body	Cast iron, non corrosive
Power Requirements	AC/DC Motor 1/10 Hp 8000 rpm 220v, 1.3 amps
Shuttle/Hook	Looper Type
Stitch Length	3.5 Stitches/inch (25.4mm)
Speed	1600-1800 stitches per minute
Stitch Length Selector	Fixed
Pressure Adjuster	Thumb Screw
Bag Closing Speed	5-8 sec/bag, 39 fpm at 3.5 stitches/inch (25.4mm)
Presser Foot Lifter & Thread Cone Cover	N.A
